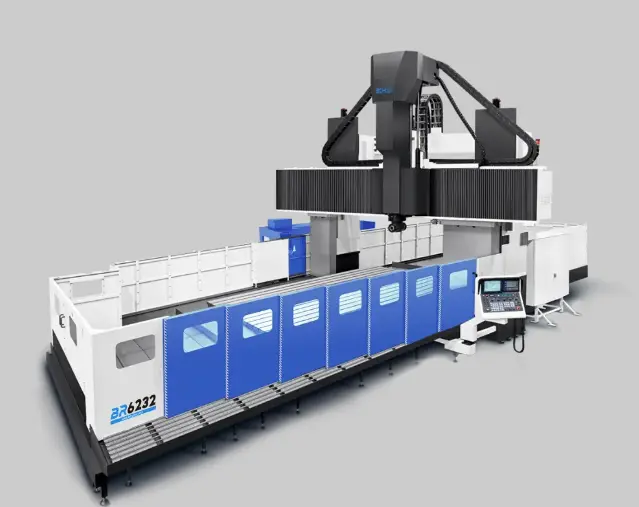

The selection of a CNC gantry machining center is important to industries that involve large and complicated parts in manufacturing that demands an accurate and efficient machining solution to provide optimum results for reduced manufacturing lead time. It does not matter whether you are manufacturing aerospace parts, automobiles or constructions, a suitable CNC gantry machining center can greatly improve your productivity. Listing below are the restraints to bear in mind when selecting cnc gantry machining center.

1. Size of work and Dimensions of Table

The size of materials for machining is a key factor of consideration while choosing the CNC gantry machining center. It is used for large parts, and while every table size and gantry height can be different e.g. BORUI CNC gantry machining center provides such . Another factor deals with the table, where it is also wise to select one with adequate size in encircling your most usually encountered workpiece size.

2. Material Compatibility

Another consideration is the properties of materials that are to be machined since these properties will determine the degree of hardness. CNC gantry machining centers can be applied not only to metal but also to plastic and composite materials. However, there are certain machines that perform better on certain types of material due to their spindle power, cutting tools and machine rigidity etc.

3. Spindle Power and Speed

Spindle is one of the most important elements of any CNC machining center; it is the heart of the system. Its power and speed define the efficiency of the material cutting by the given machine. When selecting a CNC gantry machining center, it is advisable to look at the horsepower or kilowatts of the spindle preferred and maximum RPM of the machine e.g. BORUI CNC.

4. Machine rigidity and stability.

They are also accountable for the stiffness is a critical attribute that defines both the accuracy of machining and the service life of the machine. A CNC gantry machining center has to handle forces developed during the cutting operations without compromising on the workpiece position. High rigidity machines cause less vibration which results in better cuts, improved tolerances and better tool longevity.

5. There are two axises and they are set horizontal and vertical.

CNC gantry machining centers are available in a 3-axis, 4-axis, and 5-axis in various models. This depends on the number of axes and the versatility of the machine in addition to using one set up to machine the complex parts.

3-axis machines are best useful for simple operations where the workpiece does not need to be accessed from all sides and the depth of cut is not very deep, operations like bone turning, drilling or cutting flat plane only.

4-axes include an additional rotary axis for machining cylindrical workpieces or making angular cuts without repositioning the work piece.

5-axes provide maximum flexibility, allowing for direct machinating along all three axes and minimizing the instances at which multiple operations will need to be completed.

6. Control System And Programs Assurance

The control system is the human interface that enables one to run the CNC gantry machining center and run programs. That is why it is so important to have a clear, practical, and functional control system. When selecting a machine it is also important to check on the control system type, well-known brands are Siemens, Fanuc or Heidenhain, these are normally the best brands.

7. Tooling Option and Tool Changer Capacity

This is a crucial factor for multiprocess and complex operation as it permits changing the tool in operation during the change process. Common to CNC gantry machining centers are automatic tool changers (ATC) capable of storing from ten to over one hundred tools.

8. Precision and Accuracy

Since your plans demand varied levels of accuracy, you need to know the kind of machine to use. For sectors such as aerospace or the production of medical devices where precision is critical, a CNC gantry machining center with the necessary high positional accuracy and about shot repeatability is necessary.

9. After-Sales Support Service

CNC gantry machining centers are very large and complicated in construction and this means that they need to be properly maintained at all times to function optimally. When choosing a machine one needs to keep in mind the spare parts availability, simplicity of the machine and the manufacturer’s readiness to help.

10. Cost and Return on Investment (ROI)

Last of all, look into the costs associated with the CNC gantry machining center, its price, maintenance cost, and other recurrent charges. It may sound a bit counterintuitive, however, cost should not be the primary factor to select the equipment, a long-term ROI approach should be used. A machine with higher initial outlay costs, high operational costs, increased durability, and lower operational costs may be cheaper in the long run.

Conclusion:

Selecting an appropriate CNC gantry machining center involves task specification characteristics such as; size of the workpiece, material type, spindle power, machine stiffness and control system of the CNC gantry machining center to be purchased. Selecting the most appropriate cnc gantry machining center for your production helps you be competitive and operationally efficient in the current manufacturing environment.
